1x2 HDMI Splitter with Audio, 4Kx2k @30Hz, EDID
详细说明

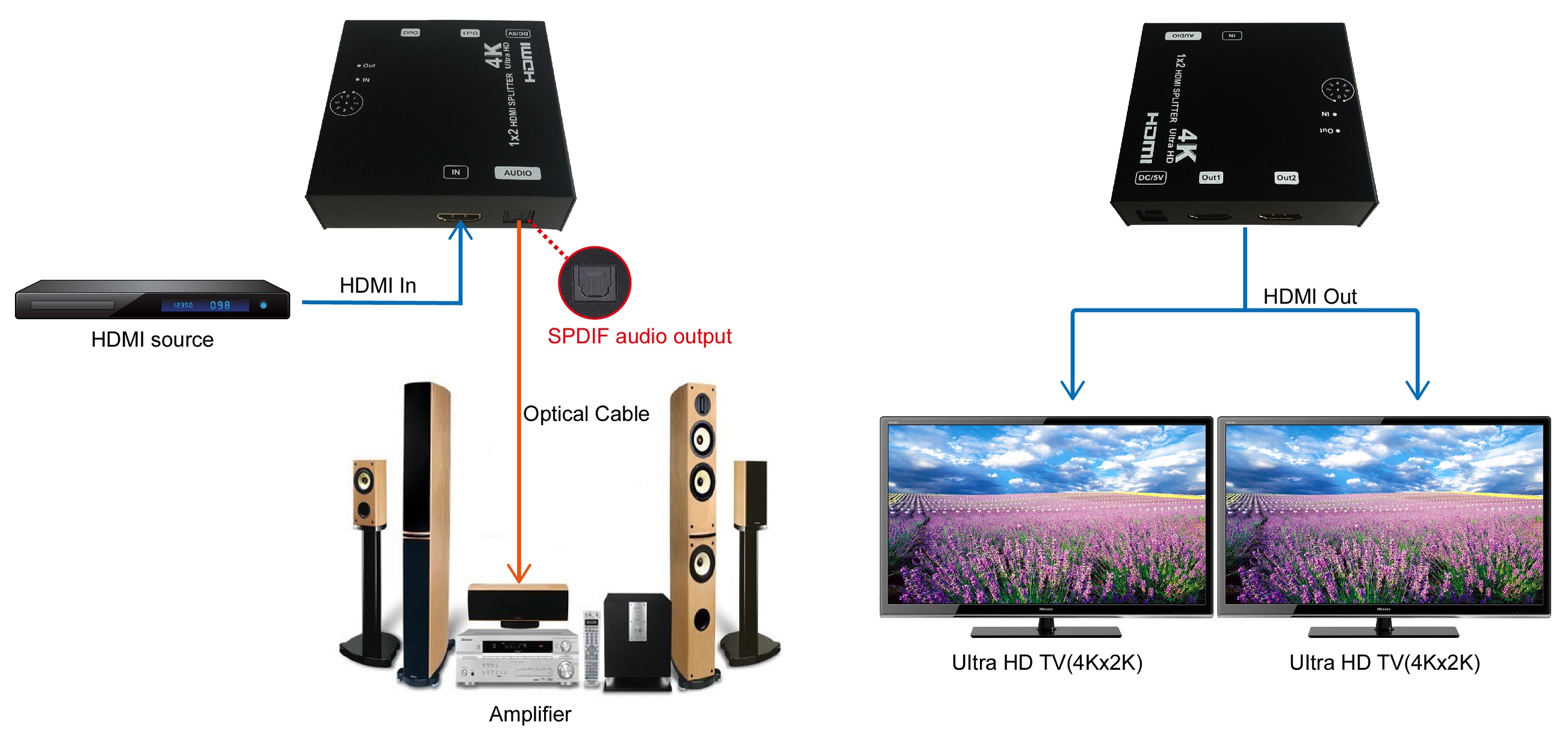

布线图
说明书下载
2). Support resolution up to 4Kx2K@30Hz
3). Advanced EDID management for sources and displays
4). With Audio extraction (SPDIF optical audio output)
5). Support Dolby TrueHD,and DTS-HD Master Audio
6). Supports deep color 36 bit
7). Supports 3D
8). DC 5V 1A power supply
9). Size:87x87x26mm
Input 1x HDMI ( Female Type A )
Outputs 2x HDMI ( Female Type A )
Box Dimensions
Carton Dimensions 430mm[L] x 320mm [W] x 310mm[H]
QTY/CTN 20 pcs
Net Weight 10
Gross Weight 11
