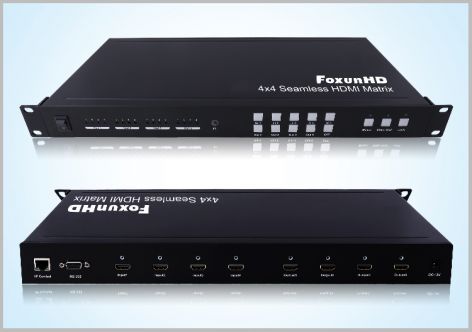

SMX44 4x4 Seamless HDMI Matrix With 2x2 Video Wall Controller
FX-SMX44
1 Feature
l Any one of the 4 sources to any one of the 4 displays
l Seamless switching ensures no switching dealy and pictures loss during
Transitions, the switching speed is less than 1 second
l Support 2x2 Video wall mode
l Any one of the four outputs can be turned off independently
l Each port support both HDMI and DVI inputs
l Support high definition resolutions, including:1080p@60Hz@36b/pixels, 1080i,720p and other standard video formats
l With panel button, Remote Control, RS232 Control, IP Control to select the source
l 1U rack design, easy installment
l DC 12V 3A power supply
l Size: L438xW220xH44mm
l Weight:2.80kg
2
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉)
|
|
Operating Humidity Range |
5 to 90 % RH (no condensation) |
|
Input Video signal |
0.5-1.0 volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Video Format supported |
DTV/HDTV:1080P/1080i/720P/576P/480P/576i/480i |
|
Audio Format supported |
LPCM |
|
Input ports |
4xHDMI(standard Type A connector) |
|
Output ports |
4xHDMI(standard Type A connector) |
|
Matrix mode |
4x4 Seamless switching |
|
Video wall mode |
2x2 video wall |
|
Power Consumption |
24wtts |
|
Dimensions(LxWxH) |
438×220×44mm |
|
2800g |
