Product

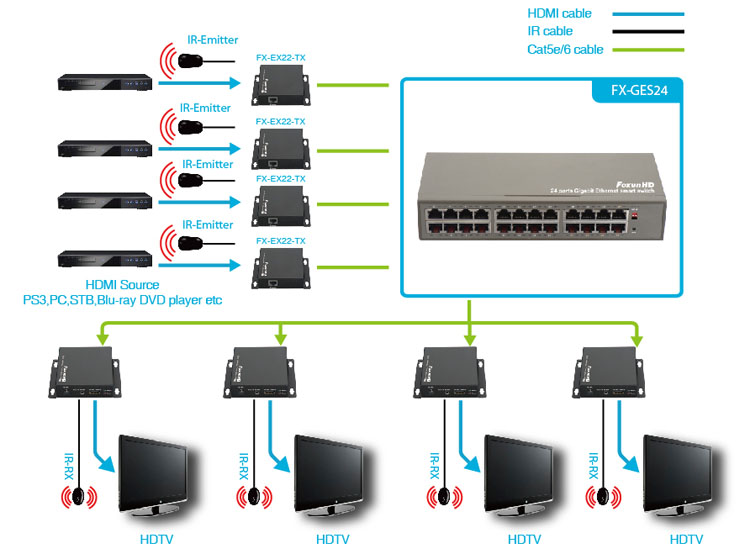

24 port HDMI smart matrix over cat5e/6 cable
FX-GES24
1 Feature
l Gigabit Enthernet smart with 24 PCS RJ45 ports,each port can be set as input or output
l Support default configuration which can be restored to overwrite the current configurantion whitch is working on via Web UI and Reset button of the switch.
l Supports user managment and limits one user to login.
l 8K MAC address.
l Full-deplex flow(IEEE802.3x)and half-deplex backpressure.
l Supports Unkown Unicast/Broadcast/Multicast Storm Control.
l Power Consumption：4.5W
l Dimension (L×W×H):225x103x42mm
l Net Weight:Receiver:1.02kg
2 SPECIFICATIONS
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Support Video Format |
1080P |
|
Video Output |
|
|
Transmission Distance |
1080P 8-bit 120m over single CAT5E/6 /24AWG/Solid |
|
Power consumption |
4.5W |
|
IR frequency |
38kHz-56kHz |
|
Dimension (L×W×H) |
225x103x42mm |
|
Net Weight |
1.02kg |
