EW60-3DIR 60m HDMI Extender over single Cat5e/6
FX-EW60-3DIR
1 Feature

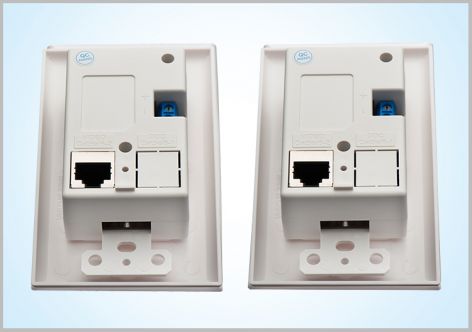

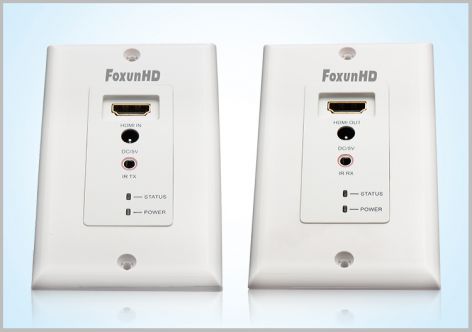

l Each set includes one transmitter and one receiver.
l Following North American wall plate standard

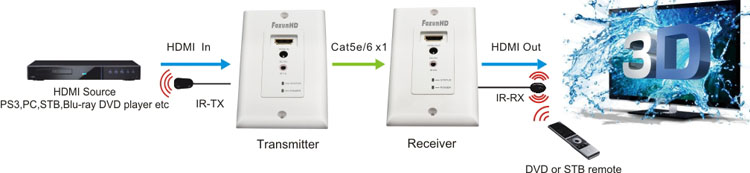

l Use single UTP cable(Cat5e/6) to substitute HDMI cable to achieve long distance transmission,
The UTP cable follows the standard of IEEE-568B
l Transmission distance reaches up to 60 meters under the video format of 1080p.
l Signaling rates up to 2.25 Gbits at 1080p.
l With IR control to the source.
l Support 3D video format.
l Power Consumption：TX:3watts;RX:3watts
l Dimension (L×W×H):115x70x35mm.
l Net Weight:Receiver:130g,Transmitter:130g
2
|
Operating Temperature Range |
-5 to +65℃(+23 to +149℉) |
|
Operating Humidity Range |
5 to 90%RH (No Condensation) |
|
Input Video Signal |
0.5-1.0 Volts P-P |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Support Video Format |
DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
3D video format |
|
Video Output |
|
|
Support Audio Format |
DTS-HD Master Audio、Dolby true-HD etc. |
|
Transmission Distance |
1080P 8-bit 60m
over CAT5E/CAT6 /24AWG/Solid(recommend to use 23AWG Cat6 cable)
over CAT5E/CAT6 /24AWG/Solid(recommend to use 23AWG Cat6 cable) |
|
Power consumption |
3watts |
|
IR wavelength & frequency |
Wavelength:940mm,frequency 38KHz |
|
Dimension (L×W×H) |
115x70x35mm |
|
Net Weight |
Receiver:130g,Transmitter:130g |
